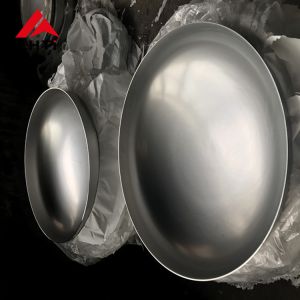

Grade 2 Titanium Spherical Heads
Titanium Spherical Heads ,aso called Titanium dish head,Titanium Elliptical Heads.It is a kind of boiler part
in pressure vessel. It is usually used at both ends of pressure vessels. Then there is a welding pipe fitting
product used for plugging at the end of the pipe. There are many forms. The head is a part of the container
and is welded to the barrel. According to the different geometric shapes, it can be divided into spherical, elliptical,
disc, spherical crown, cone shell and cover, among which spherical, elliptical, disc and spherical crown head are
collectively referred to as convex head. In the welding is divided into butt welding head, socket welding head.
Used in various vessels and equipment, such as storage tanks, heat exchangers, towers, reactors, boilers and
separation equipment, etc.
| Material | Titanium |
| Grade | Gr1 Gr2 Gr7 Gr12 etc. |
| Color | Natural |
| Standard | ANSI, ASME ,MSS, API, DIN, JIS |
| Reduction Ratio | About 10% |
| Size range | 50mm-10000mm with integral formed, larger sizes with subsection formed can be specified. Customized size available |
| Surface Treatment | Sand Blasting, Pickling |
| Technology | Hot pressing, cold pressing |
| Test | UT, RT, MT, PT, ET |
| Applications | Mainly for pressure vessels and boilers in diverse industry such as oil, chemical, winery, pharmaceutical, environmental and military. |
| Custom-made | Support |
(Titanium dish head )DIN28013:
| D (mm) | s min/max (mm) | Volumen (L) | h1 (mm) | kg pr mm s | D (mm) | s min/max (mm) | Volumen (L) | h1 (mm) | kg pr mm s |
| 300 | 4-10 | 3.5 | 78 | 1,0 | 1550 | 5-15 | 483 | 403 | 22.5 |
| 350 | 4-10 | 5.6 | 91 | 1.3 | 1600 | 5-15 | 532 | 416 | 23.9 |
| 400 | 4-10 | 8.3 | 104 | 1,7 | 1650 | 5-15 | 585 | 429 | 25,4 |
| 450 | 4-10 | 11.8 | 117 | 2,1 | 1700 | 5-15 | 640 | 442 | 27.0 |
| 500 | 4-10 | 16.1 | 130 | 2.6 | 1750 | 5-15 | 700 | 455 | 28.5 |
| 550 | 3-12 | 21,6 | 143 | 3,1 | 1800 | 5-15 | 760 | 468 | 30 |
| 600 | 3-12 | 28,0 | 156 | 3.6 | 1850 | 5-15 | 825 | 481 | 31.5 |
| 650 | 3-12 | 36.0 | 169 | 4,2 | 1900 | 5-15 | 890 | 494 | 33 |
| 700 | 3-12 | 44,5 | 182 | 4,8 | 1950 | 5-15 | 965 | 507 | 36 |
| 750 | 3-12 | 54.5 | 195 | 5,5 | 2000 | 6-15 | 1040 | 520 | 37 |
| 800 | 3-13 | 66.5 | 203 | 6.2 | 2050 | 6-15 | 1120 | 533 | 38.5 |
| 850 | 3-13 | 79,5 | 221 | 7,0 | 2100 | 6-15 | 1200 | 546 | 40.5 |
| 900 | 3-13 | 94 | 234 | 乙8 | 2150 | 6-15 | 1290 | 559 | 42,5 |
| 950 | 3-13 | 111 | 247 | 8.6 | 2200 | 6-15 | 1380 | 572 | 44.5 |
| 1000 | 4-16 | 130 | 260 | 9.5 | 2250 | 6-15 | 1480 | 685 | 46.5 |
| 1050 | 4-13 | 150 | 273 | 10,4 | 2300 | 6-15 | 1580 | 598 | 46 5 |
| 1100 | 4-13 | 173 | 286 | 11,1 | 2350 | 6-15 | 1690 | 611 | 51 |
| 1150 | 4-13 | 198 | 299 | 12.5 | 2400 | 6-15 | 1800 | 624 | 53 |
| 1200 | 4-13 | 225 | 312 | 13.6 | 2450 | 6-15 | 1910 | 637 | 55 |
| 1250 | 4-13 | 254 | 325 | 14,7 | 2500 | 6-15 | 2030 | 660 | 57 |
Applications of titanium Elliptical Heads:
Know More About Titanium Elliptical Heads:
♦ Dish head (also called elliptical head or spherical head)
♦ The shape of this ellipsoidal head is more economical, because the height of the head is just a fraction
of the diameter.
♦ The elliptical dish end radius varies between the major and minor axis usually with the ratio is 2:1.
♦ The elliptical tank head is the economical solution for medium pressure tanks due to the reduced metal thickness requirement.
♦ The ellipsoidal head has good mechanical properties better than the torispherical head.
♦ Due to the application of spinning manufacturing process in recent years, the fabrications of the larger diameter
elliptical head is also can be realized.
♦ ASME elliptical dished heads are used in the construction of tanks for unfired pressure vessels, such as liquefied
petroleum gas and air receivers.
Product processing:
Our factory display:
FAQ:
Q: What’s the information should I provide when inquiry?Elliptical Head
A: If you have drawings, we will be entirely in accordance with production drawings .
If you do not have the drawing, you can tell me the product data.
There are several important data, such as material, type of head( We have elliptical head, hemispherical
head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements.
We can do the drawings according to your requirements, and you confirm that the final product drawings.
Q: How do you ensure the quality of products?
A: Thanks for your question.Our production staff is trained through national quality department, and obtain
the corresponding certificate, with years of production and design experience.
Weld must undergo X-ray inspection to ensure that no defects.
Q: Can you help us matching related products?
A: Our company also is surrounded by a lot of ancillary businesses, such as titanium flanges, titanium pipe
fittings , and other equipment.
We can help you matching the highest quality products with the lowest prices.
