Bubble Cap Tower Tray For Distillation Column for tower internals

Description

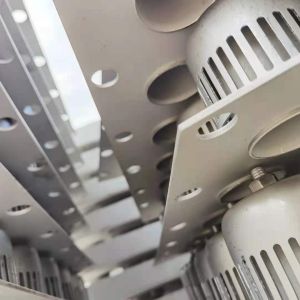

Bubble cap tray is a flat perforated plate with risers (like pipes) around the perforations, and caps in the form of inverted cups over the risers.

The caps are usually equipped with slots or holes through which vapor comes out. The cap is mounted so that there is a space between riser and cap to allow the passage of vapor. Vapor rises through the riser and is directed downward by the cap passing through slots in the cap, and finally bubbling through the liquid on the tray. As vapor has to pass through many passages, this leads to higher pressure drop and lower capacity than other conventional trays. Liquid and froth are filled on the tray to a depth at least equal to weir height or riser height, hereby giving the bubble cap tray a unique ability to be used for reaction applications.

Advantage
(1) The gas and liquid phases are in full contact and the mass transfer area is large, so the tray efficiency is high.
(2) The operation flexibility is large, and the high efficiency can be maintained when the load variation range is large.
(3) It has high production capacity and is suitable for large-scale production.
(4) It is not easy to block, the medium adapts to a wide range, and the operation is stable and reliable
Application:
Mainly usend in reactive distillation, separation of certain organic products; separation of benzene-methyl; separation of
nitrochlorobenzene; oxidation and absorption of ethylene.

Detailed images:

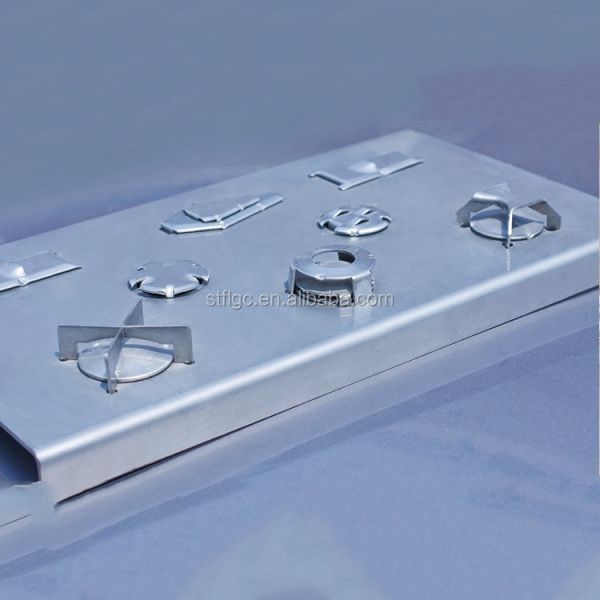

Related products :

Welcome to contact!

Baoji Lihua Non-ferrous Metal Co., Ltd. was established in 2006. The company relies on theadvantages of Baoji industry and its strong technical support. It has been engaged in theproduction and sales of non-ferrous metals such as titanium, tantalum and nickel for many years.

The factory covers an area of 800 square meters. The factory has strong technical equipment. There are more than 20 sets of CNC machines, milling and drilling machines, and the annualproduction value is more than 30 million CNY.

The company's product is high quality and stable for many years, and it has obtained the Certification ISO 9001:2015, BV audit certification.

The company has been focusing on the improvement and stability of product quality for many years. Based on the business concept of maximizing customer service, we warmly welcome you to come for advice and business negotiation!
