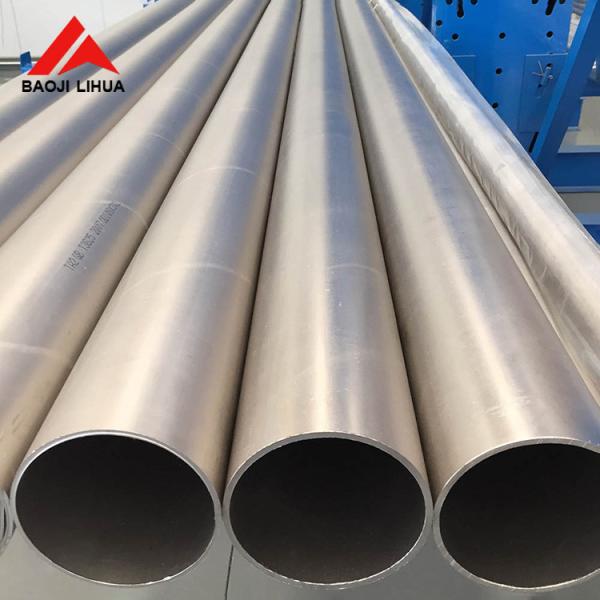

High Quality ASTM B861 Gr2 Gr7 Gr12 titanium seamless pipe with length = 6000mm price per kg
Titanium Tube Information
| Name | Pure Titanium & Titanium Alloy Tube /Pipe/Tubing |
| Tube Shape | Round Square Flat Coil |
| Material | Gr1,Gr2,Gr7,Gr12. |
| Standard | ASTM B338 |
| Type | Seamless |
| OD | 3-114mm or as customized |
| Wall Thickness | 0.2-50mm or as customized |
| Length | Max 6 meter |
| End | Plain End, Beveled End, Threaded |
| Certificate | EN 10204/3.1B, Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report---TUV,BV,SGS etc |
| Application | Off-Shore Oil Drilling Companies Power Generation Petrochemicals Gas Processing Specialty Chemicals Pharmaceuticals Pharmaceutical Equipment Chemical Equipment Sea Water Equipment Heat Exchangers Condensers Pulp and Paper Industry |
| Grade | N | C | H | Fe | O | Al | V | Ti | Other , max |
| 1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | Bal | 0.4 |
| 2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | Bal | 0.4 |
| 7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | Bal | 0.4 |
| 9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5-3.5 | 2.0-3.0 | Bal | 0.4 |
| 12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | Bal | 0.4 |
| Grade | Tensile Strength(min) | Yeild Strength(0.2% offset)) | Elongation(%) | ||||
| ksi | MPa | Min | Max | ||||
| Ksi | Mpa | Ksi | Mpa | ||||
| 2 | 50 | 345 | 40 | 275 | 65 | 450 | 20 |
| 7 | 50 | 345 | 40 | 275 | 65 | 450 | 20 |
| 12 | 70 | 483 | 50 | 345 | - | - | 18C |
Available dimensions of titanium tube
Outside Diameters:5m to 159mm (seamless tube)
Wall thickness:0.5mm to 7mm
Length:1 meter to 12 meters
Outside Diameters:55m to 914mm (welding tube)
Wall thickness:2mm to 10mm
Length:1 meter to 6 meters
Customer fedback Pictures
Titanium tube has Strong corrosion resistance, which is due to its strong affinity to oxygen, can generate a dense oxide film on its surface, which can protect titanium from medium corrosion. Therefore, titanium has good stability in acid, alkaline, neutral salt solution and oxidizing medium, better than existing stainless steel and other non-ferrous metals corrosion resistance.
Titanium tubes have the feature of lightweight, high strength and superior mechanical properties. Titanium tubes are widely used in heat-exchange equipment, such as tube-type heat-exchanger, coiled type heat-exchanger, coil heat-exchanger, condenser, evaporator, and transmission pipeline. Many nuclear power industries use titanium tubes as the unit standard tubes
We are one of the professional titanium mill product manufactuers with Foreign Trade Department,and certified to ISO 9001:2008, we are be able to supply titanium products with full range of sizes in all grades under ASTM,ANSI,DIN,JIS with high quality and competitiveprice. Seamless titanium tube.Our ISO certificate is your order's premise.You can trust us.power and chemical plant,autumotive components,sports,marine corrosion.
Top titanium tube with top process technical and very strict quality supervision,In strict accordance with the standard production,100% ensure quality of tube.
Related products
We still have Titanium flange,titanium bends,titanium Pipe fittings etc.More details please feel free contact us.
|
|
