EN1092-1 Type11B UNS R50400 Grade 2 welding neck Titanium flanges WN flange

Type:WN flange

Material Grade: Titanium Gr2

Dimension:DN15-DN1200

Pressure:PN0.6-PN40 ( Class150-class3000 )
State: Annealed state (M), hot processed state (R), cold processed state (Y)
Surface: forged surface, CNC polished surface
Classification:

1. According to the connected parts, the titanium flange connection is a detachable connection.

According to the connected parts, it can be divided into container flanges and tube titanium flanges.
2. According to the structure, there are integral titanium flanges, butt welded titanium flanges, loose titanium flanges

and threaded titanium flanges.
Applications: chemical equipment, mechanical equipment, condensers, evaporators and heat exchanger pipes,

marine water intake system accessories.

Titanium flange is a kind of parts made of titanium or titanium alloy, which is connected to each other and

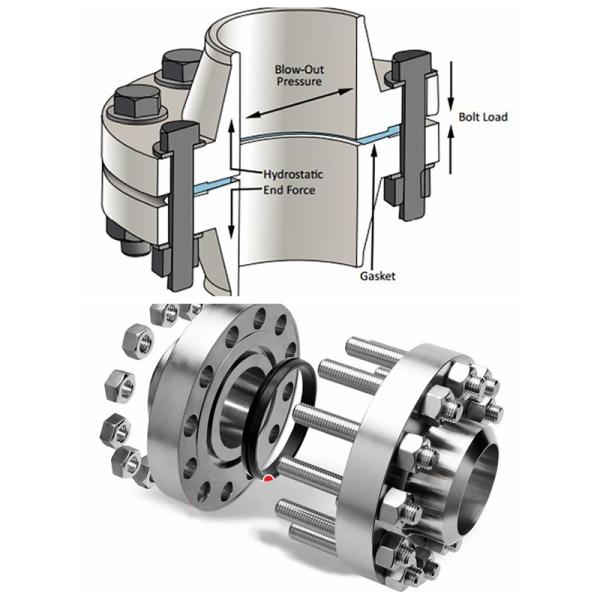

connected to the pipe end. It can be connected by thread or welding. The flange connection consists of

a pair of flanges, a gasket and several bolts and nuts. The gasket is placed between the sealing surfaces

of the two flanges. After tightening the nut, the gasket When the specific pressure on the surface reaches a

certain value, it deforms and fills the unevenness on the sealing surface, making the connection tight and leak-proof.

Titanium flanges have excellent anti-corrosion, acid and alkali resistance, long service life, low density,

high strength, equipment weight, smooth surface, no dirt, and greatly reduced dirt coefficient in many media.

It is widely used in petroleum, chemical industry, electric power, metallurgy, chemical fiber, food, pharmaceutical,

chlor-alkali, vacuum salt making, fine chemical industry, biological engineering, seawater desalination,

maritime engineering and other industries.

Available Flange types:

Baoji Lihua Non-ferrous Metals Co., Ltd, founded in 2006, lies in Tai Cheng road Baoji city---

It is famous for manufacturing titanium, called “China Titanium Valley”. We are specialized in

manufacturing, researching and marketing for titanium products and equipment. With 10 years

export Experience, our products was sold to Asia, Europe, North America in large quantity.

In addition to provide preferential price for customers, we pay much attention to quality, and

have a good after-sales service.All products we produced are based on the standard:

German standard ,Aerospace standard, European standard, etc. Including ANSI B16.5,

ASTM B16.5, ASME B16.47, JIS B2220, DIN2627-2628. Lihua is certified by ISO9001:2008,

and IQNET. Many of our products have passed SGS,BV, LR'S ,TUV and other international

inspection agency inspection.

Contact me in any time!

Baoji Lihua Non-ferrous Metal Co., Ltd. was established in 2006. The company relies on theadvantages of Baoji industry and its strong technical support. It has been engaged in theproduction and sales of non-ferrous metals such as titanium, tantalum and nickel for many years.

The factory covers an area of 800 square meters. The factory has strong technical equipment. There are more than 20 sets of CNC machines, milling and drilling machines, and the annualproduction value is more than 30 million CNY.

The company's product is high quality and stable for many years, and it has obtained the Certification ISO 9001:2015, BV audit certification.

The company has been focusing on the improvement and stability of product quality for many years. Based on the business concept of maximizing customer service, we warmly welcome you to come for advice and business negotiation!
