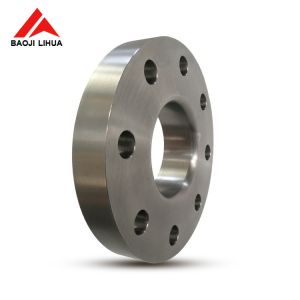

Manufacturer of ASME B16.5 SO flange gr F2 gr F12 titanium slip on flange
1. Our Company
As a leading manufacturer of titanium products for over 16 years, we have exported titanium flange to many countries, including Italy, Russia, Turkey and Chile etc. The quality of our products is widely recognized. So you should have confidence in our company.
2. Advantages of Titanium Slip On Flange
(1) Long service life;
(2) Excellent corrosion resistance;
(3) High yeiled strength and tensile strength;
(4) Full set of tests;
(5) Our moulds for flange are very complete, so we can produce flanges in all standards, including EN1092-1, ASME B16.5, DIN and BS etc.
3. Product Information of Titanium Slip On Flange
| Product | titanium slip on flange |
| Item Name | Manufacturer of ASME B16.5 SO flange gr F2 gr F12 titanium slip on flange |
| Application | chemical industry |
| Standard | ANSI B16.5, ASME B16.5, EN1092-1, JIS B2220, DIN2627-2628 |
| Material | Gr1, Gr2, Gr5, Gr7, Gr12 |
| Size | 1/2''~80''(DN10~3600) |
| Pressure | ANSI: Class 150-2500 DIN:PN6-PN250 |
| Sealing Surface | RF, FF, TG, RJ etc. |
| Technique | Froged and CNC Machined |
4. Detailed Images of Titanium Slip On Flange
5. Package of Titanium Slip On Flange
Titanium slip on flanges are used in various industries including petrochemical, oil and gas, power generation, bulk liquid transportation, chemicals, pharmaceuticals, pulp and paper manufacturing, textiles and others. Titanium slip on flanges are packed to ensure that there is no damage during shipment. In case of export, standard export packaging is done in plywood box. Markings can be made as you require.
6. All Tests of Titanium Slip On Flange
Visual testing (VT)
Ultrasonic Testing (UT)
Radiographic Testing (RT)
Magnetic particle testing (MT)
Penetrant Testing/Dye penetrate (PT)
Eddy Current testing (ET)
Acoustic Emission(AE)
7. Chemical Requirements of Titanium Slip On Flange
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
8. Tensile Requirements of Titanium Slip On Flange
| Grade | Tensile strength(min) | Yield strength(min) | Elongation(%) | ||
| ksi | M Pa | ksi | M Pa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 9 | 90 | 620 | 70 | 438 | 15 |
| 12 | 70 | 438 | 50 | 345 | 18 |
|
|
